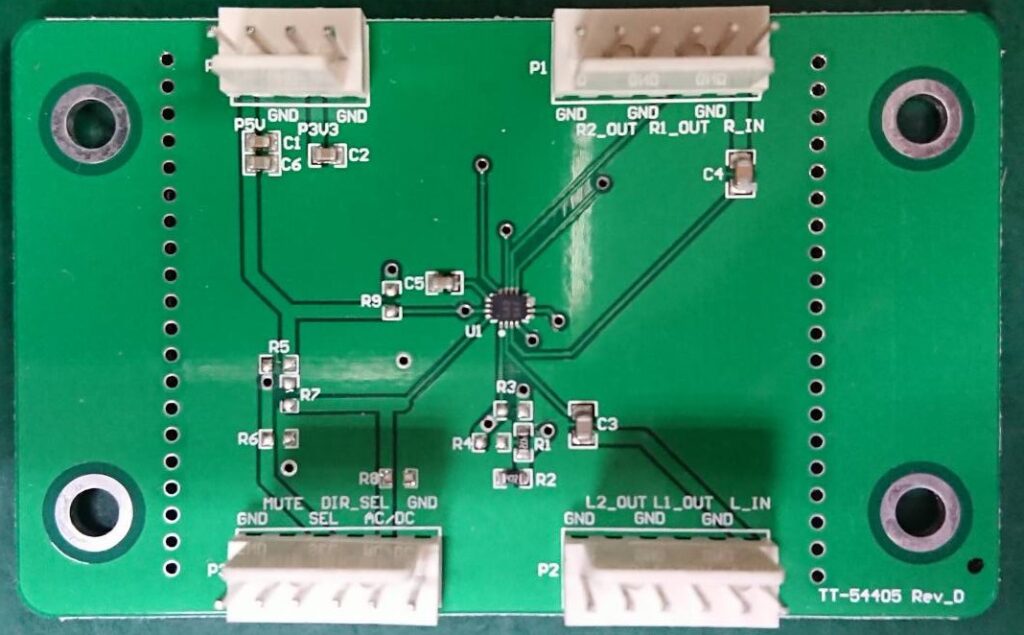

TT-54405 Rev_D Multiplexer Module features:
- ISL54405 CD/MP3 Quality Stereo 2:1 Multiplexer with Click and Pop Elimination
- Clickless audio switching
- 2 switches
- Switch type SPDT or 2 to 1 MUX
- 2VRMS signal switching from 3.3V or 5V supply
- -106dB THD+N into 20kOhm load at 2VRMS
- -108dB THD+N into 32kOhm load at 39mW
- Signal to noise > 124 dBV
- 0.01dB insertion loss at 1kHz, 20kOhm load
- 0.007dB gain variation 20Hz to 20kHz
- 125dB signal muting into 20kOhm load
- 90dB PSRR 20Hz to 20kHz
